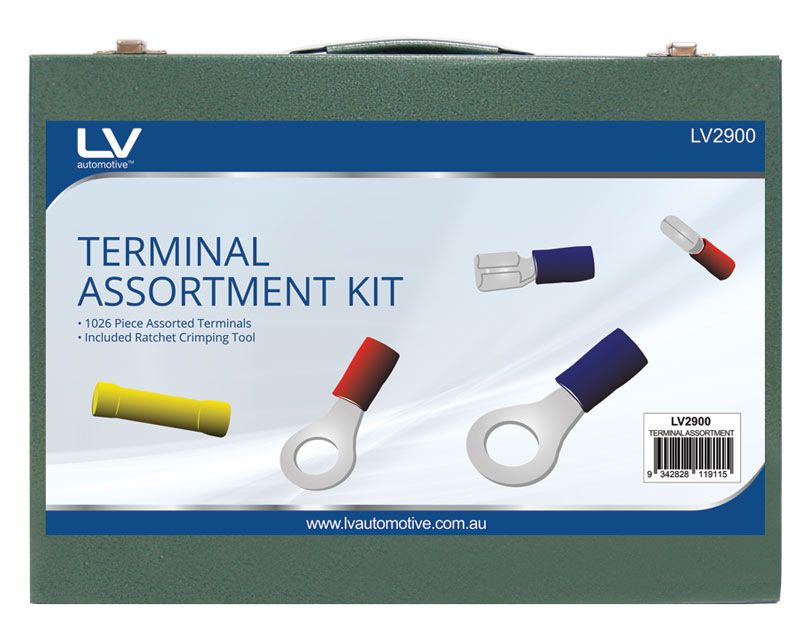

LV 2900 TERMINAL ASSORTMENT KIT 1026PC INCLUDES RATCHET CRIMPING TOOL

LV2900
TERMINAL ASSORTMENT KIT
• 1026 pieces assorted terminals
 including ratchet crimping tool
• Material: Brass vinyl insulator
• Double crimp terminals
• Operating temperature: + 105°C
• Heavy duty storage case

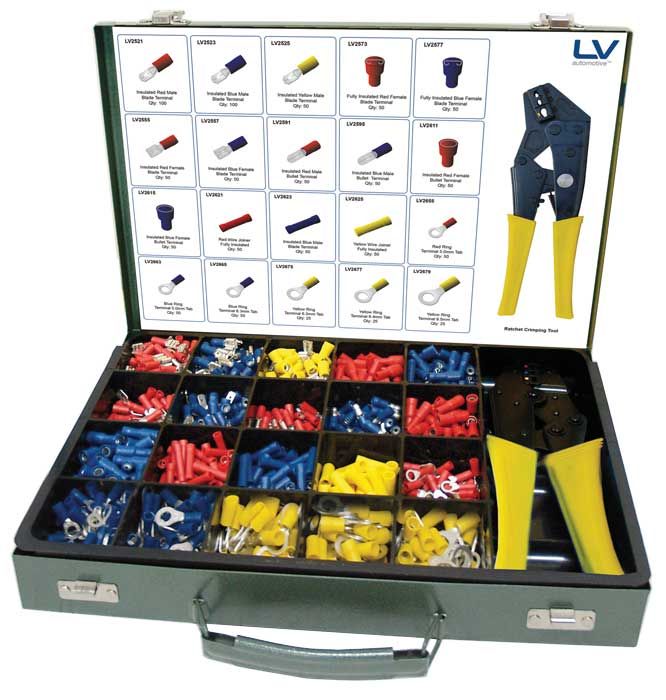

KIT CONTAINS
Part No. Description Qty
LV2521 Insulated Red Male Blade 100
LV2523 Insulated Blue Male Blade 100
LV2525 Insulated Yellow Male Blade 50
LV2573 Fully Insulated Red Female Blade 50
LV2577 Fully Insulated Blue Female Blade 50
LV2555 Insulated Red Female Blade 50
LV2557 Insulated Blue Female Blade 50
LV2591 Insulated Red Male Bullet 50
LV2595 Insulated Blue Male Bullet 50
LV2611 Fully Insulated Red Female Bullet 50
LV2615 Fully Insulated Blue Female Bullet 50
Part No. Description Qty
LV2621 Red Cable Joiner 50
LV2623 Blue Cable Joiner 50
LV2625 Yellow Cable Joiner 50
LV2655 5mm Red Ring Terminal 50
LV2663 5mm Blue Ring Terminal 50
LV2665 6.3mm Blue Ring Terminal 50
LV2675 6.3mm Yellow Ring Terminal 25
LV2677 8.4mm Yellow Ring Terminal 25
LV2679 9.5mm Yellow Ring Terminal  25
- Ratchet Crimping Tool 1
